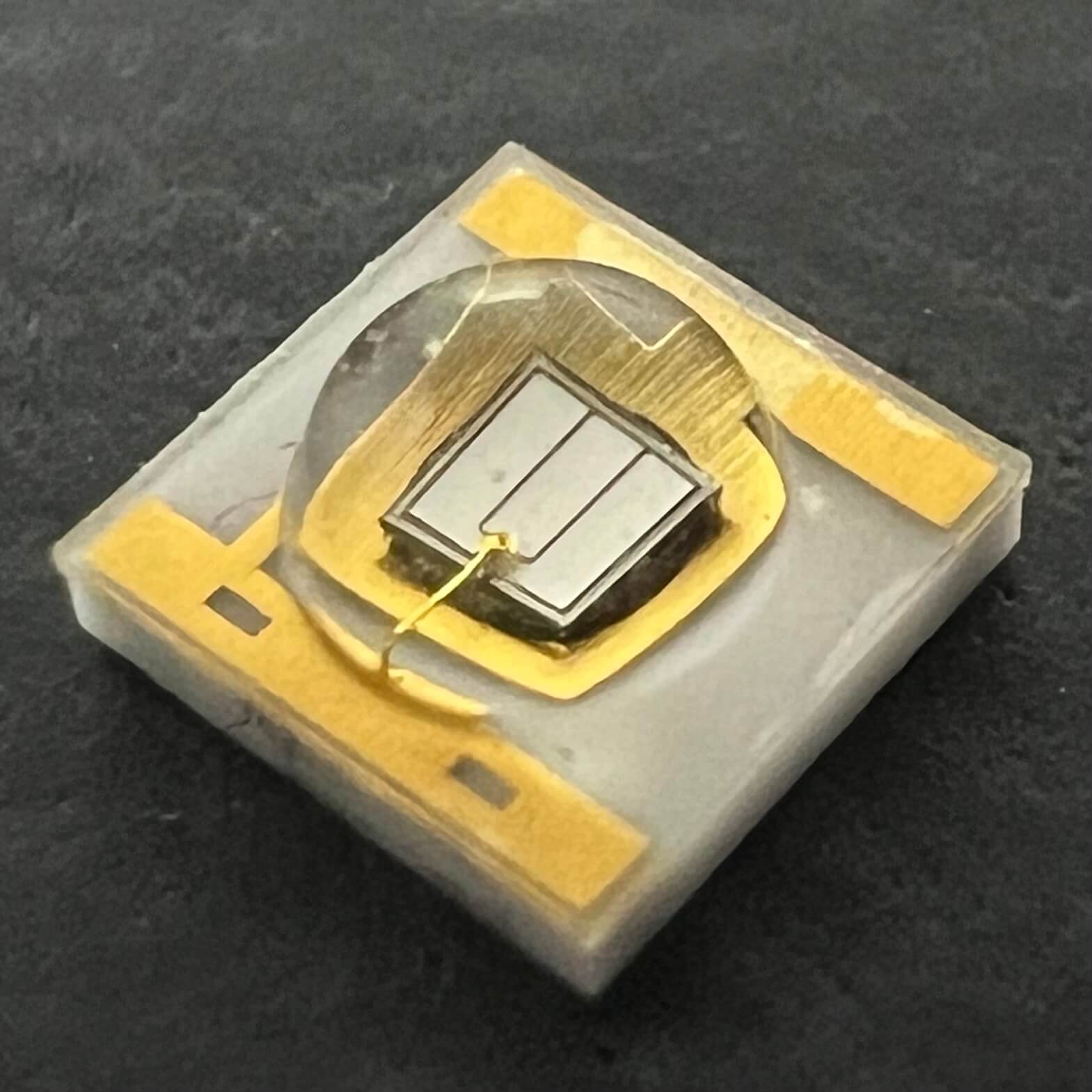

C3535 MCE Series Single Chip LEDs

Loading...

The C3535M Series offers a versatile range of wavelengths from 440 to 650 nm, making it ideal for diverse applications. Its primary lens is designed to provide various beam angle options, with compatibility for secondary lenses to enhance performance. Key applications include horticulture, aquarium lighting, signaling, medical analysis, and beauty devices, delivering tailored lighting solutions with precision and reliability.

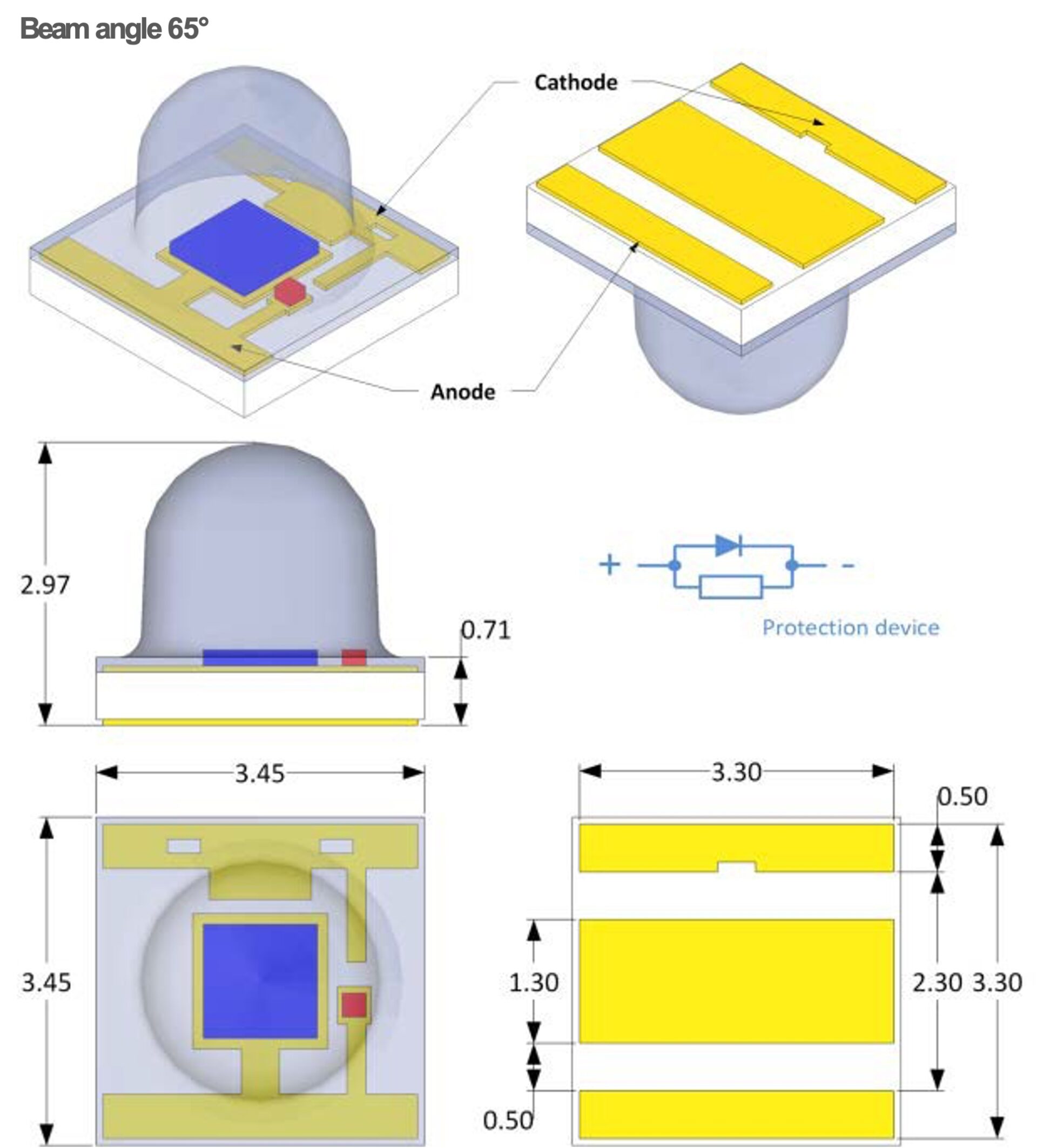

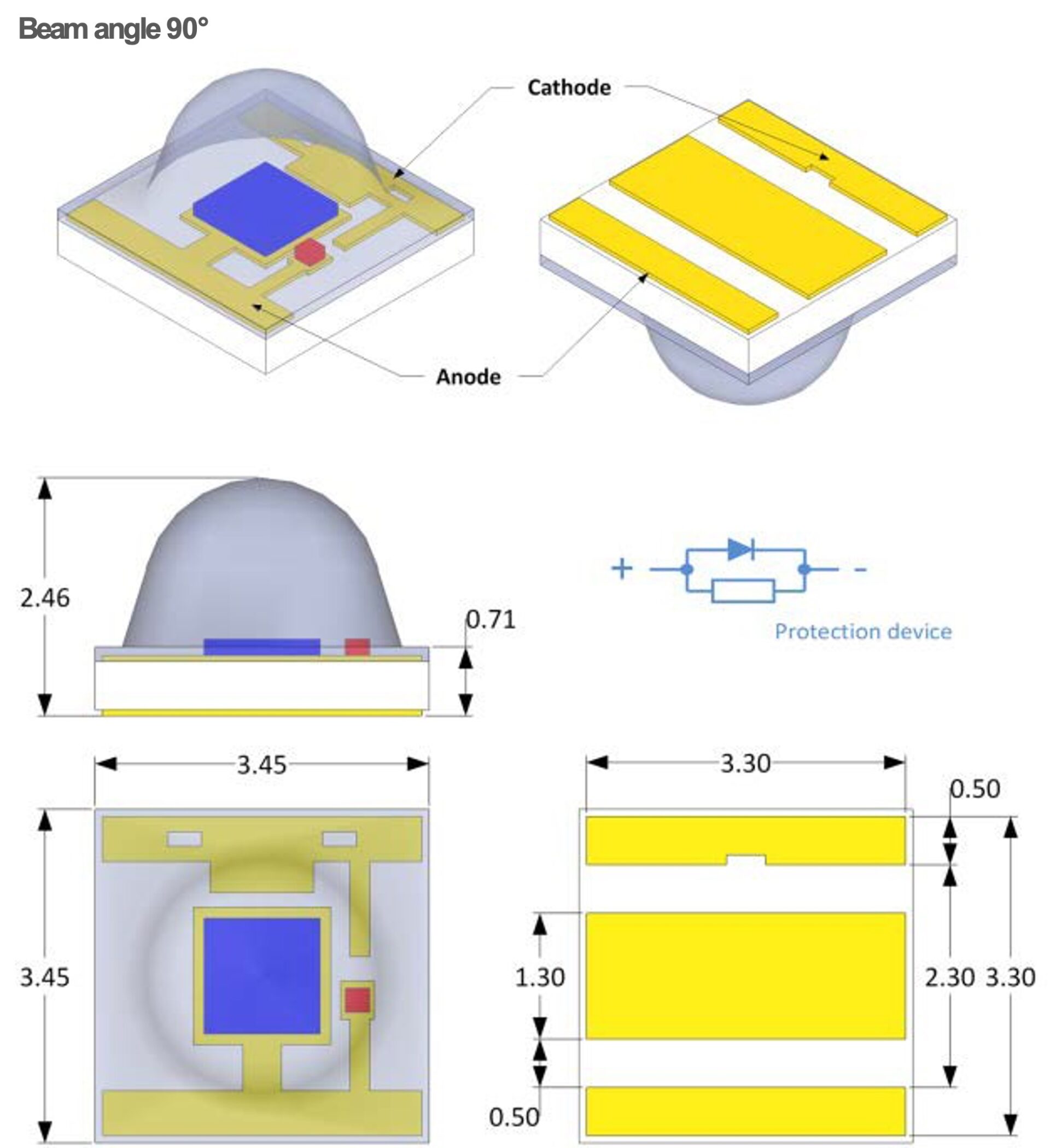

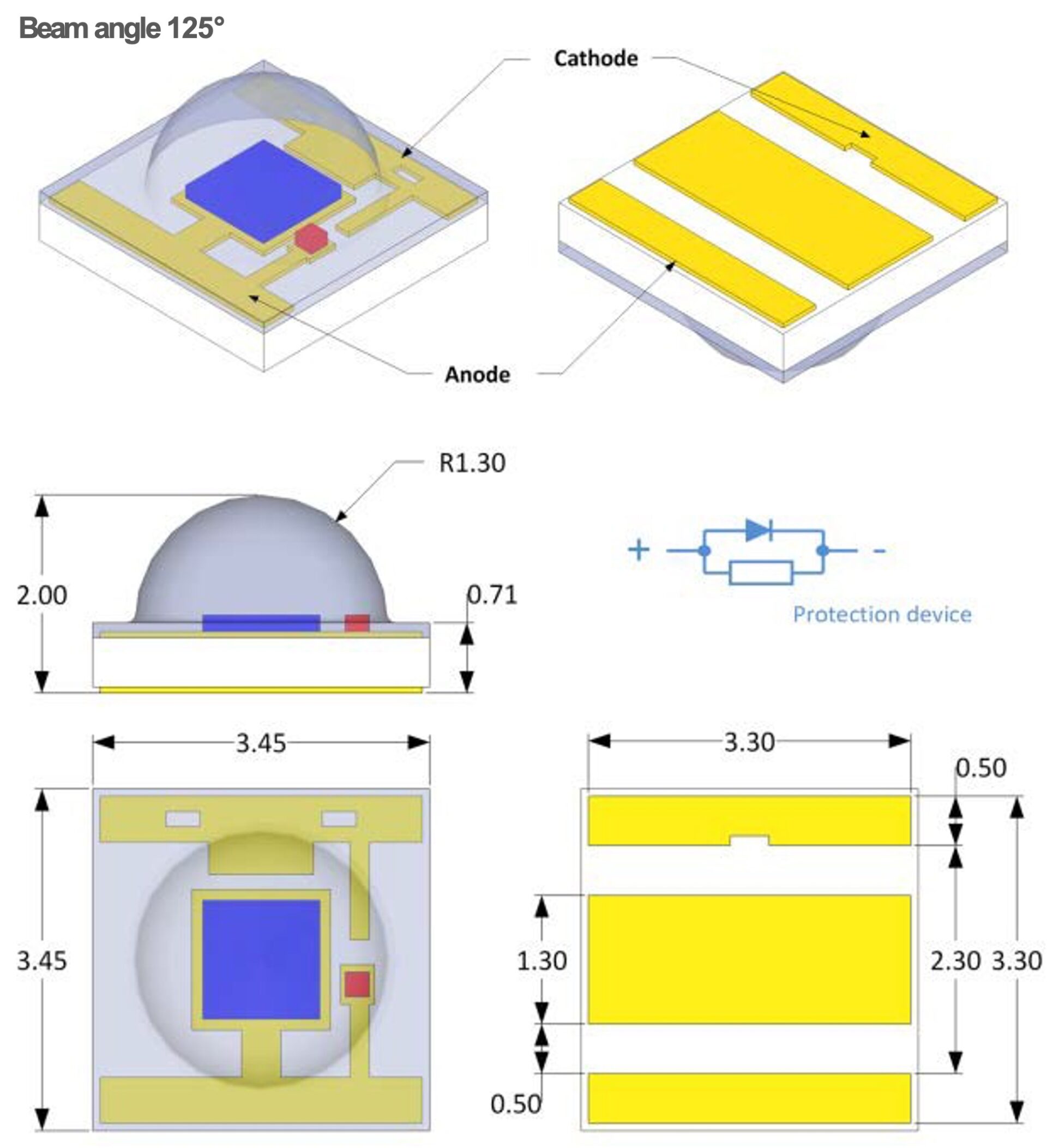

Part numberColorλd /λp/CCT*Beam angle
(degree)
Datasheet
C3535L-C0 seriesCool White4750-10000K130/90/65Download PDF
C3535L-N1 seriesNeutral White3700-4750K130/90/65Download PDF
C3535L-W7 seriesWarm White2600-3700K130/90/65Download PDF
C3535M-SN seriesSuper Red650-670nm125/85/55Download PDF
C3535M-RN seriesRed620-635nm125/85/55Download PDF
C3535M-AN seriesAmber580-600nm125/85/55Download PDF
C3535M-GN seriesGreen520-535nm130/90/65Download PDF
C3535M-CN seriesCyan500-520nm130/90/65Download PDF
C3535M-BN seriesBlue450-470nm130/90/65Download PDF
C3535M-DN seriesRoyal Blue440-450nm130/90/65Download PDF

*λd= Dominant Wavelength
λp = Peak Wavelength
CCT = Correlated Color Temperature
