N3838 340nm Series Single chip LEDs

Loading...

The N3838U (340 nm) Series is engineered for durability and reliability, featuring a robust quartz lens that offers excellent chemical resistance and easy cleaning. With its superior resistance to vaporous corrosive chemicals, it ensures optimal performance in challenging environments, making it a trusted choice for demanding industrial processes. This wavelength is utilized in niche markets such as medical analysis, specialized curing, agriculture, and forensic analysis.

Part numberColorλd /λp/CCT*Beam angle
(degree)
Datasheet

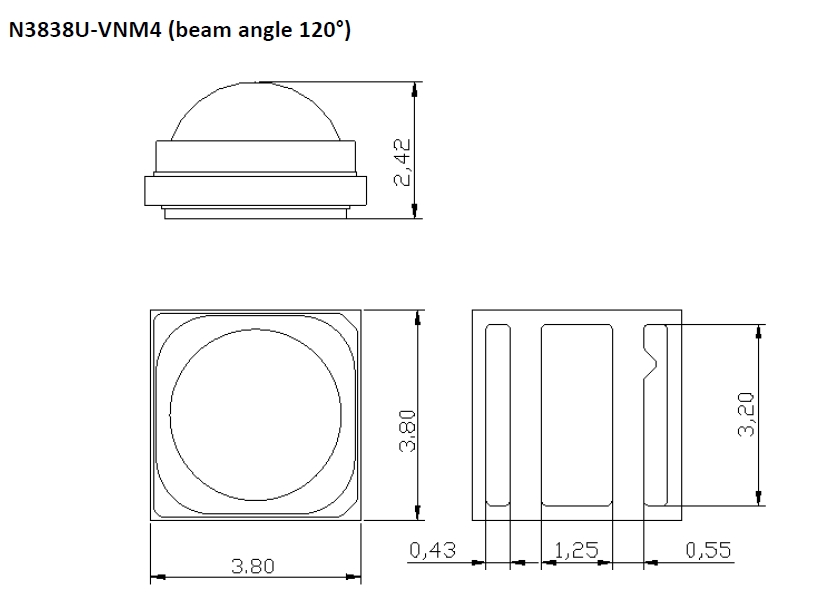

N3838U-VNM4VBx330-350nm120Download PDF

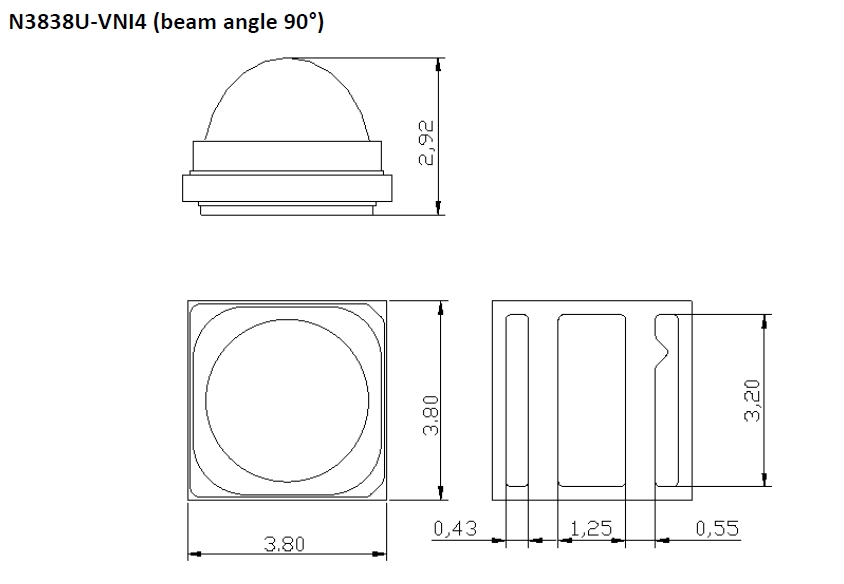

N3838U-VNI4VBx330-350nm90Download PDF

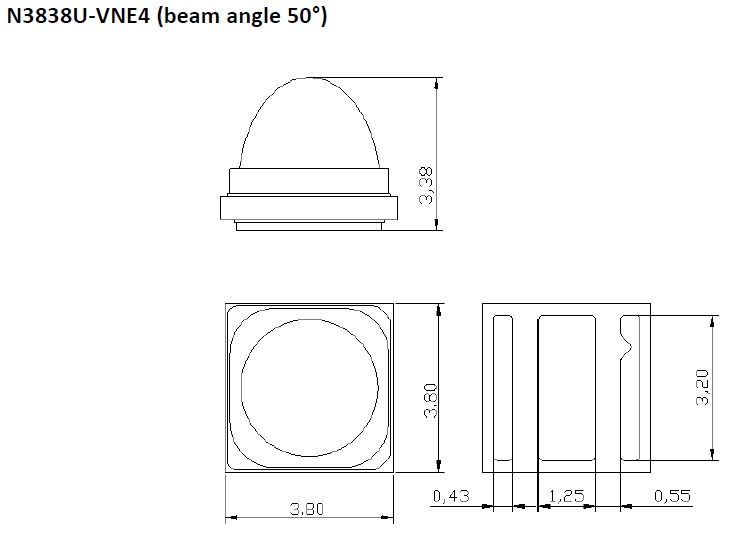

N3838U-VNE4VBx330-350nm50Download PDF

*λd= Dominant Wavelength
λp = Peak Wavelength
CCT = Correlated Color Temperature
