N5050 UVA Series Multi chip LEDs(Glass lens)

Loading...

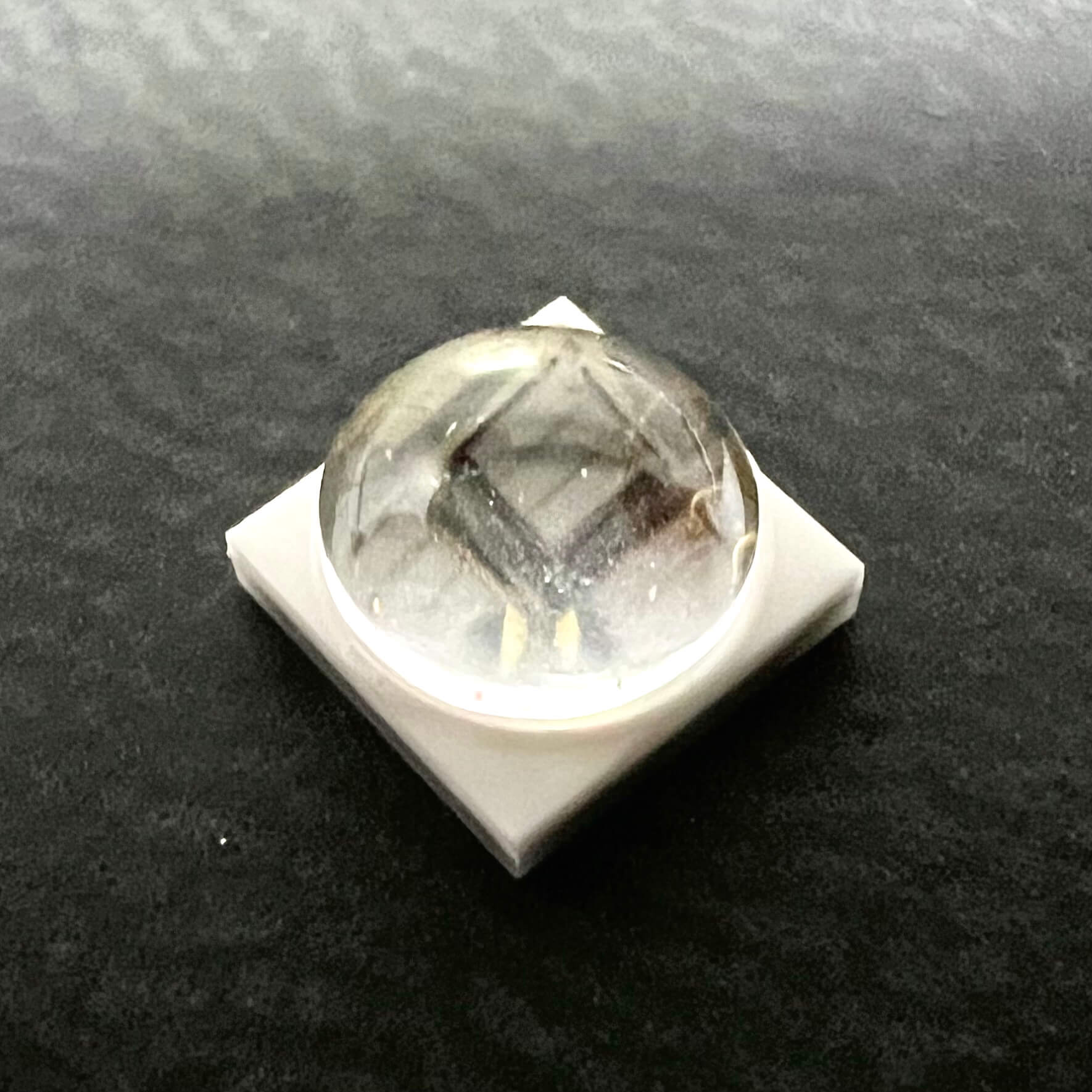

The N5050 Quartz Lens UVA Series combines durability and performance with a compact 5.0 x 5.0 mm footprint. Featuring a quartz lens for superior protection against radiation and mechanical damage, it delivers high light density with an 80° beam angle. Customizable to include multiple wavelengths between 360-420 nm, it is SMT compatible and ideal for curing, material analysis, press printing, 3D printing, medical, and beauty device applications.

Part numberColorλd /λp/CCT*Beam angle
(degree)
Datasheet
N5050U-VNH4U2X365-375nm80Download PDF
N5050U-UNH4U40380-390nm80Download PDF
N5050U-UNH4U50390-400nm80Download PDF
N5050U-UNH4U60400-410nm80Download PDF
N5050U-UNH4U70410-420nm80Download PDF

*λd= Dominant Wavelength
λp = Peak Wavelength
CCT = Correlated Color Temperature
