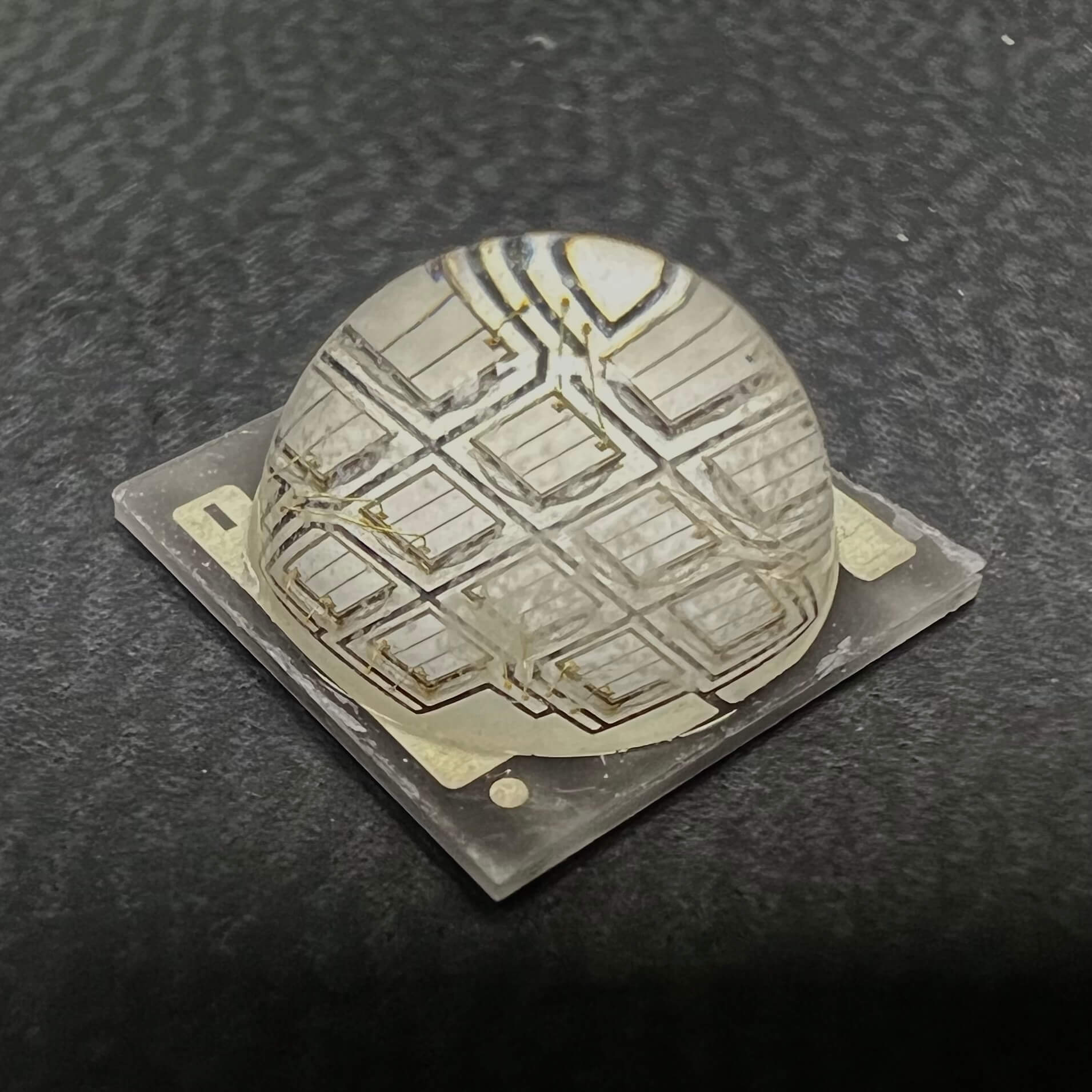

T9090 UVA Series Multi chip LEDs

Loading...

The T9090U Series delivers exceptional light density with a lambertian beam pattern, optimized for high-performance applications. Built with an aluminum nitride substrate for superior thermal management, it ensures reliability under demanding conditions. Customizable multi-wavelength configurations and other single-wavelength options are available to meet diverse application needs.

Part numberColorλd /λp/CCT*Beam angle
(degree)
Datasheet
T9090U-UNLxU40380-390nm140Download PDF
T9090U-UNLxU50390-400nm140Download PDF
T9090U-UNLxU60400-410nm140Download PDF
T9090U-UNLxU70410-420nm140Download PDF

*λd= Dominant Wavelength

λp = Peak Wavelength

CCT = Correlated Color Temperature
