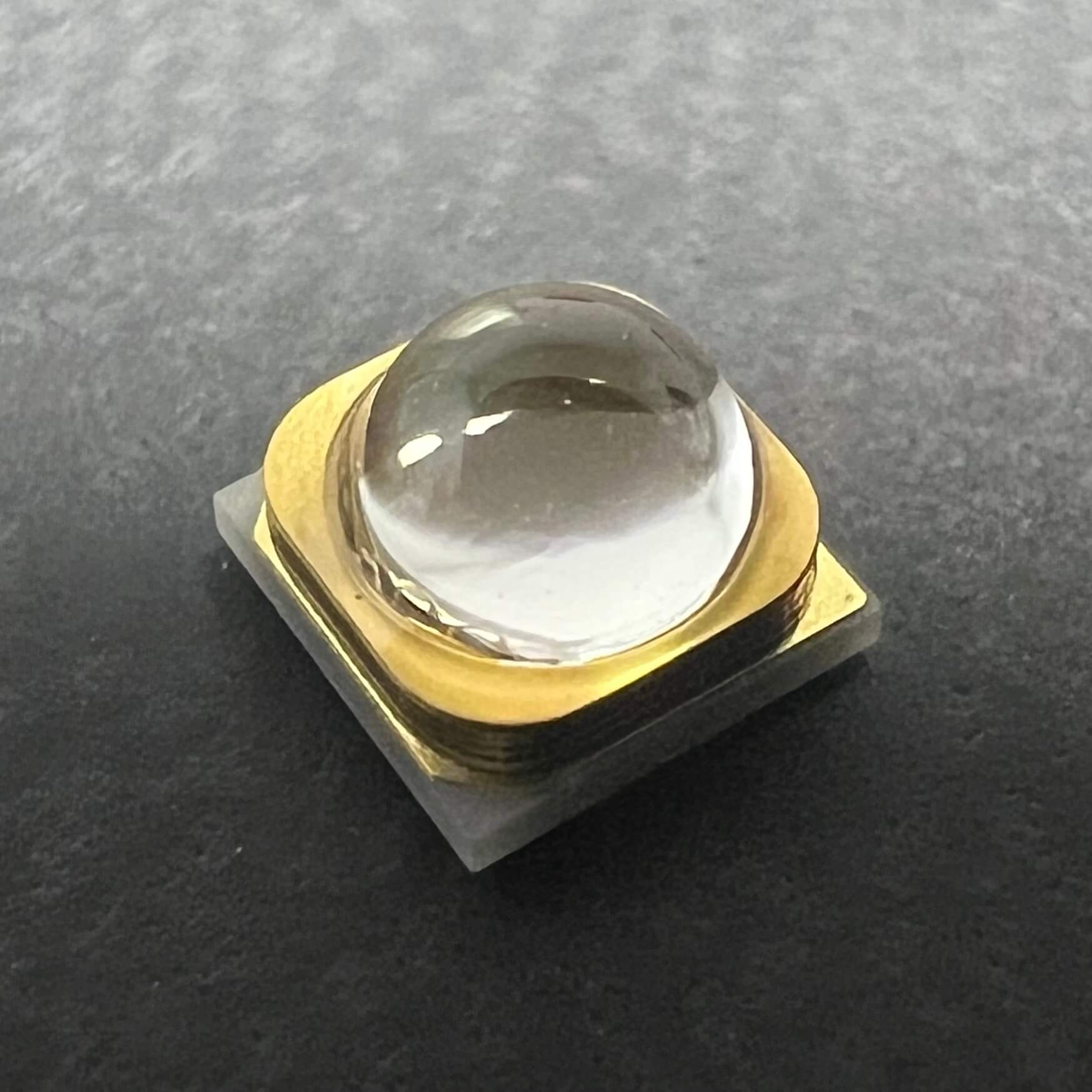

N3838 UVA Series Single chip LEDs

Loading...

The N3838U Series is engineered for durability and reliability, featuring a robust quartz lens that offers excellent chemical resistance and easy cleaning. Ideal for applications involving vaporous corrosive chemicals, it ensures optimal performance in challenging environments, making it a trusted choice for demanding industrial processes.

Part numberColorλd /λp/CCT*Beam angle
(degree)
Datasheet
N3838U-VNIxU2X365-375nm56Download PDF
N3838U-VNIxU2X365-375nm56Download PDF
N3838U-UNIxU40380-390nm56Download PDF
N3838U-UNIxU50390-400nm56Download PDF
N3838U-UNIxU60400-410nm56Download PDF
N3838U-UNIxU70410-420nm56Download PDF
N3838U-UNExU40380-390nm40Download PDF
N3838U-UNExU50380-390nm40Download PDF
N3838U-UNExU60400-410nm40Download PDF
N3838U-UNExU70410-420nm40Download PDF
N3838U-UNIx-N1J11NU60400-410nm56Download PDF

*λd= Dominant Wavelength
λp = Peak Wavelength
CCT = Correlated Color Temperature
