N3838 UVB/UVC Series Single chip LEDs

Loading...

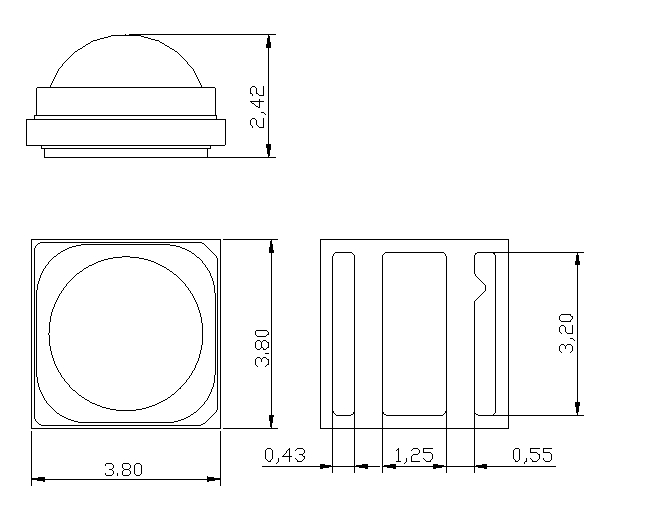

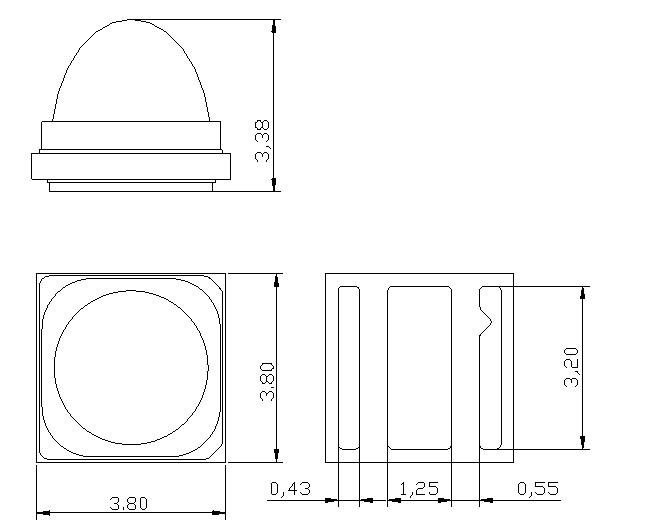

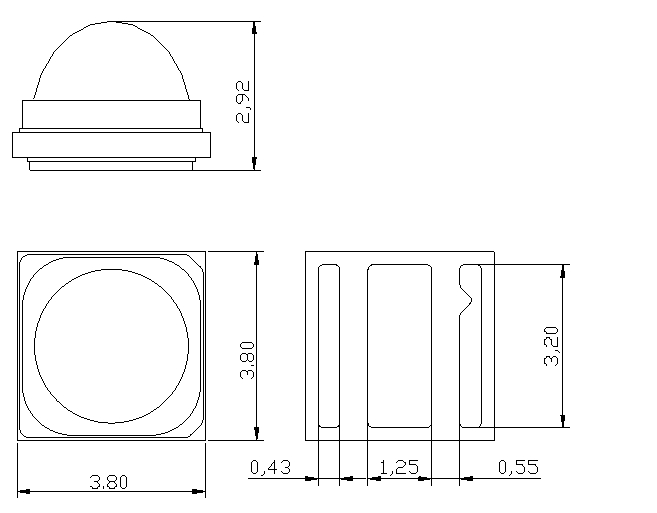

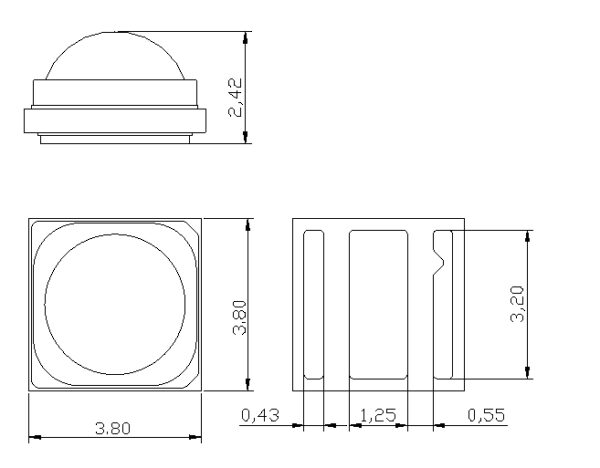

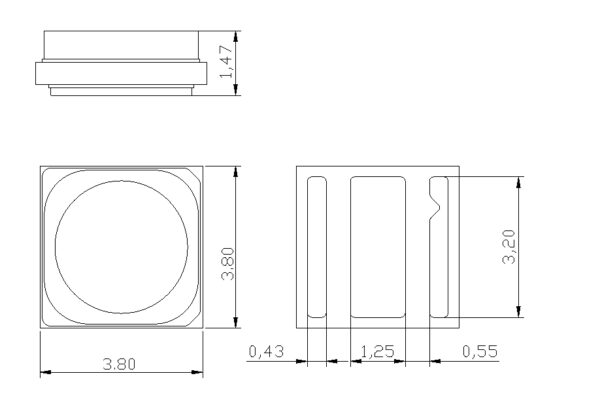

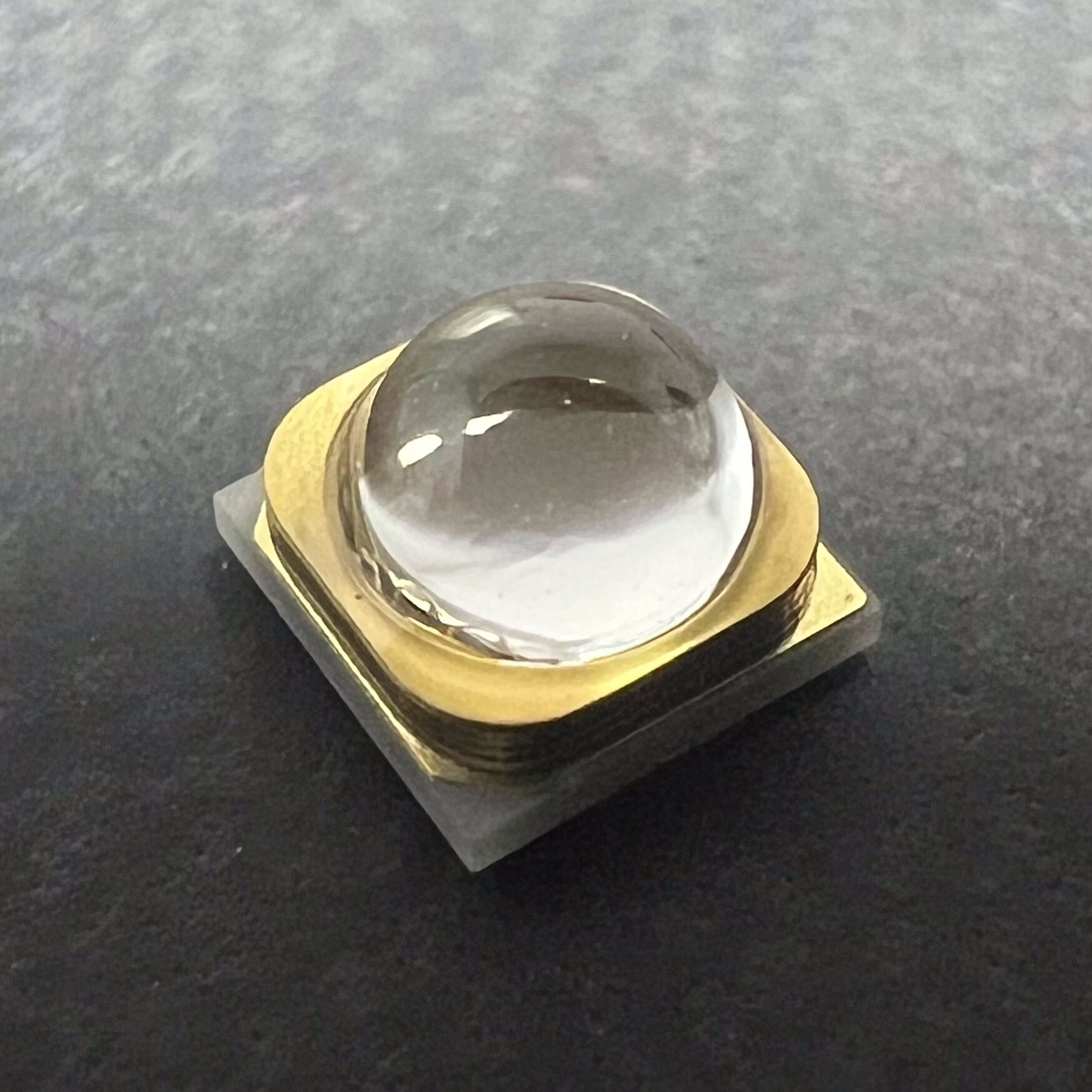

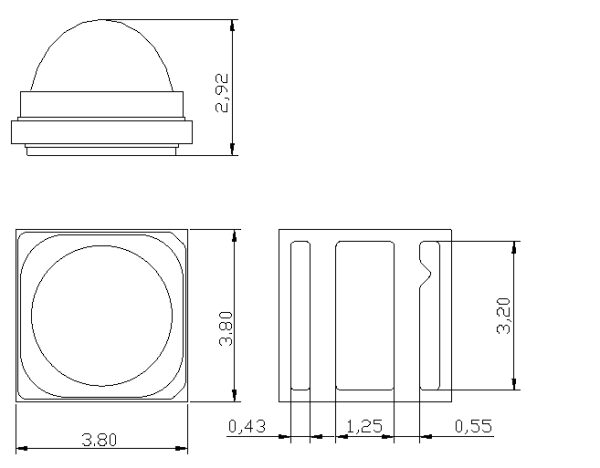

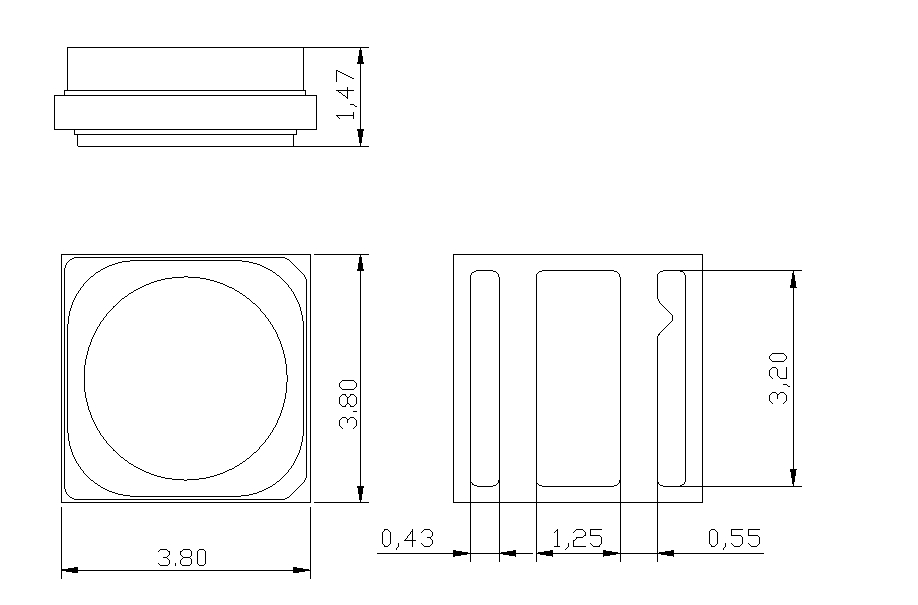

The N3838U UVB/UVC Series offers powerful disinfection capabilities in a compact 3.8 x 3.8 mm SMT-compatible package. With three beam angle options and a robust quartz lens, it ensures durability against radiation, mechanical, and chemical stress. Its proprietary design eliminates materials prone to UVC damage, making it ideal for surface, water, and air disinfection in consumer, commercial, and industrial applications. Besides discrete single-chip packages, TSLC also provides design, prototyping, and manufacturing services for modular and product-level solutions..

Part numberColorλd /λp/CCT*Beam angle
(degree)
Datasheet
N3838U-XNY8UVC270-280nm130Download PDF
N3838U-XNM8UVC270-280nm80Download PDF
N3838U-XNI8UVC270-280nm50Download PDF
N3838U-XNE8UVC270-280nm30Download PDF
N3838U-WNM4UVB300-320nm90Download PDF
N3838U-WNI4UVB300-320nm60Download PDF
N3838U-WNE4UVB300-320nm30Download PDF

*λd= Dominant Wavelength
λp = Peak Wavelength
CCT = Correlated Color Temperature
